Mail Sender

Connect to a mail server via SMTP protocol to send email. Mailbox configuration parameters depend on the email service or server being used.

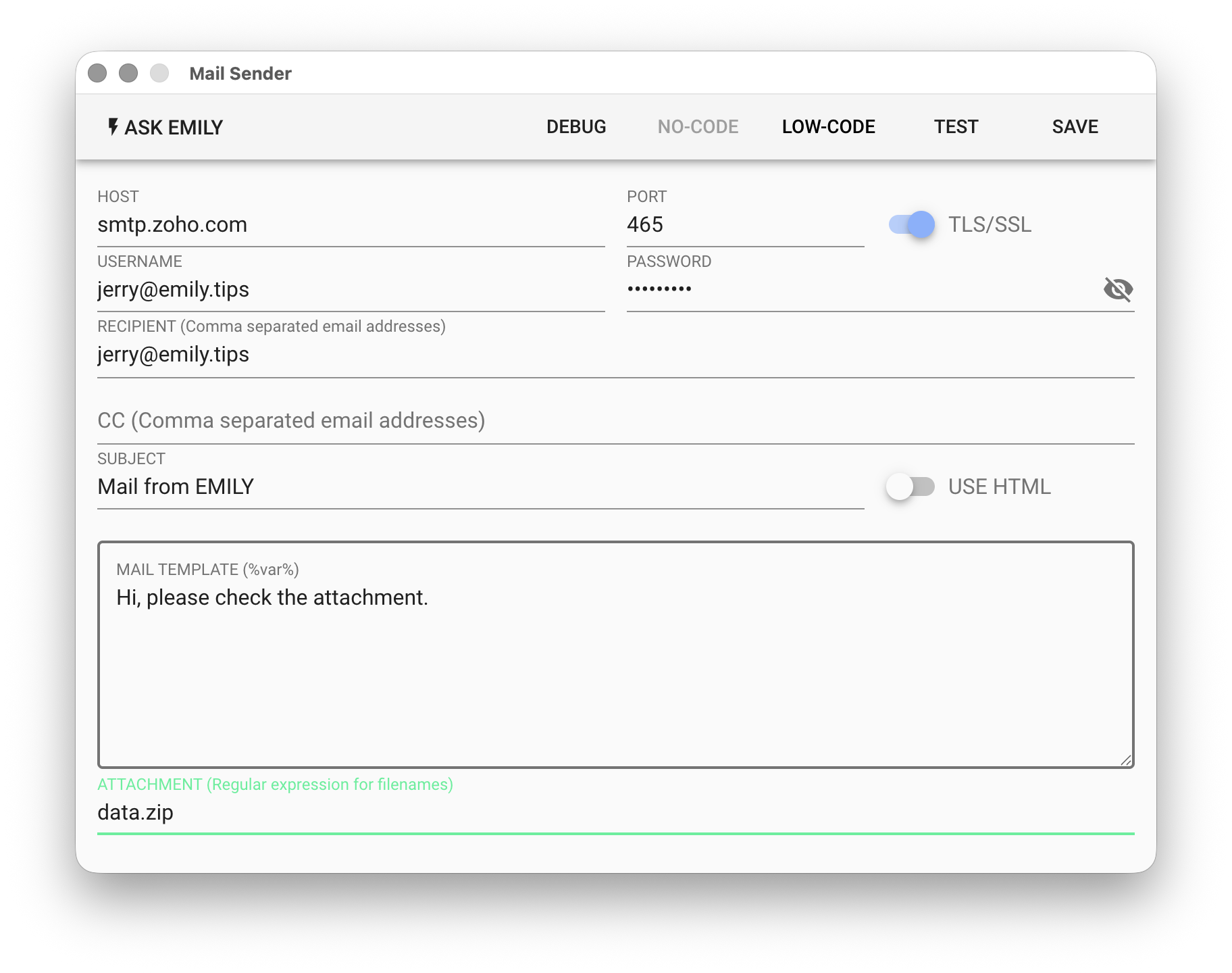

Parameters​

HOST - SMTP mail server hostname, e.g. smtp.gmail.com.

PORT - SMTP mail server port number, default is the commonly used 465.

TLS/SSL - Whether the SMTP mail server requires TLS/SSL encryption.

USERNAME - The account name configured on the mail server. Supports the %FILENAME% variable.

PASSWORD - The account password configured on the mail server. Supports the %FILENAME% variable.

RECIPIENT - Recipient address. For multiple recipients, separate with commas. Supports the %FILENAME% template, for example:

alice@mail.com,bob@mail.com,%contact%

CC - Carbon copy address. Multiple recipients follow the same format as above.

SUBJECT - Email subject. Supports the %FILENAME% template.

USE HTML - Whether the email body template uses HTML syntax.

MAIL TEMPLATE - Email body template. Supports the %FILENAME% template.

<h3>Dear %user%</h3>
<p>Thanks for subscribing %serviceName% service.</p>

ATTACHMENT - Add specified attachments using a regular expression string: invoice-[0-9]{3}\.jpg

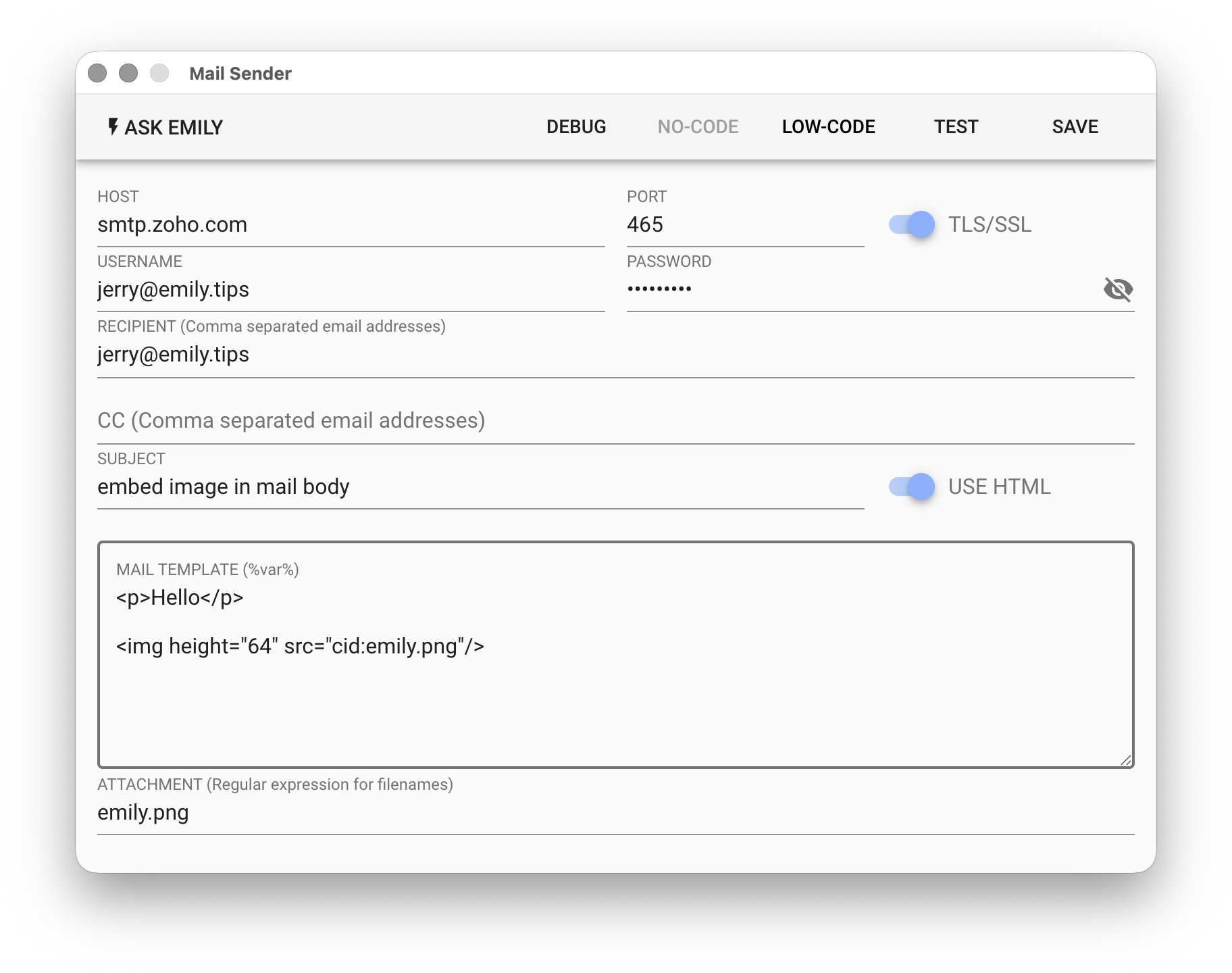

EMBED IMAGE​

The email body must have USE HTML enabled. Add the image file as an attachment and reference it in the email body using an <img> tag:

Note that in the <img> tag, the src attribute must use the cid: prefix to reference the attached image.

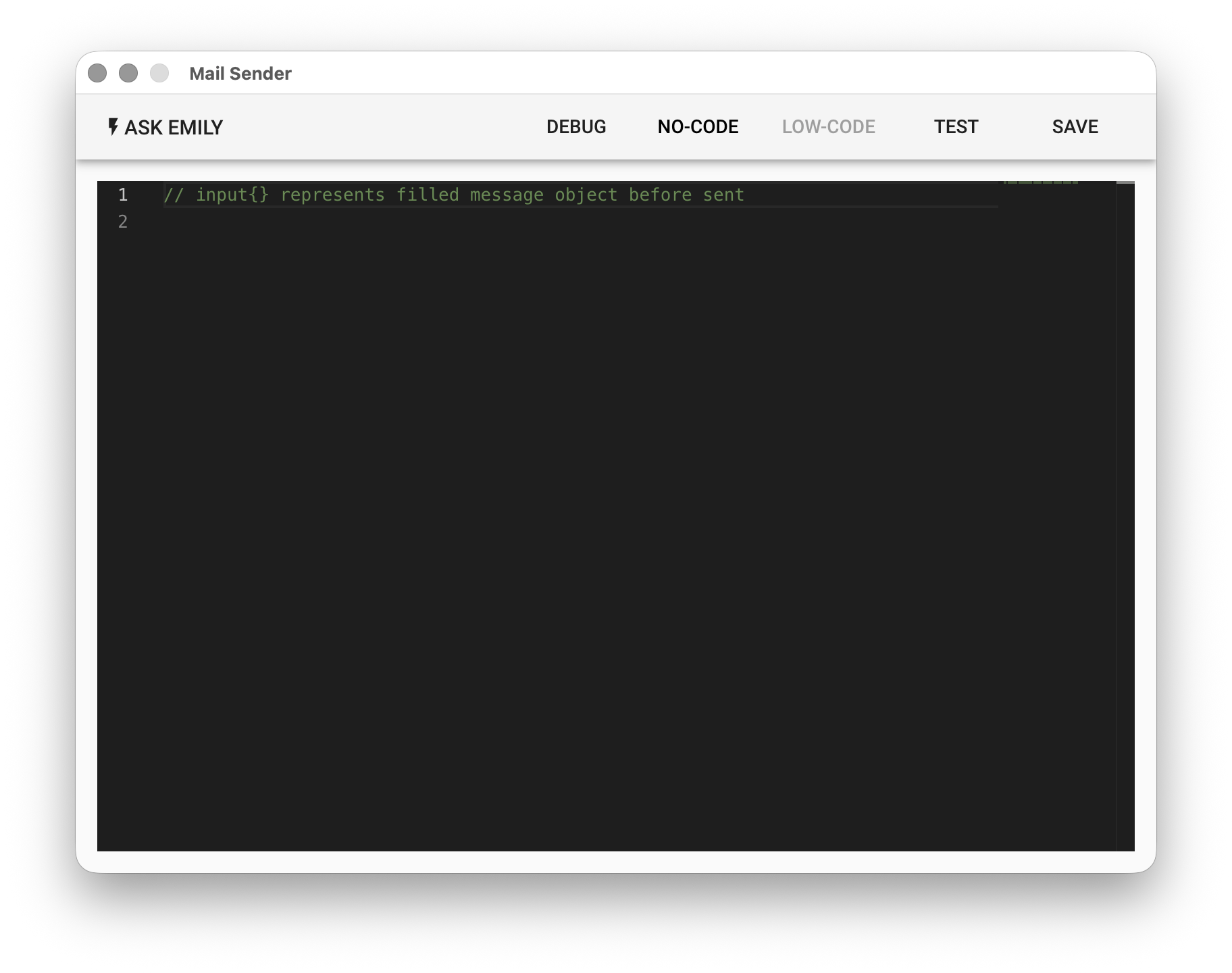

Low-Code Editor​

input Object​

The input object contains the content filled in above. You can modify it here before sending.

// Print the filled email content first, then modify before sending
console.log(input)

// Append a date to the body
input.text += `\n\n Sent on ${moment().format('YYYY-MM-DD')}`

// BCC to archive@company.com
input.bcc = 'archive@company.com'
